European mobile diagnostic case study

2013 Audi Q7 Misfire and Coolant-Leak Repair

A scan and hands-on diagnosis identified multiple problems behind the customer’s engine misfire and coolant loss. SnapFix documented the findings and completed the needed repairs on location.

Request Mobile Service

2013 Audi Q7 engine during mobile diagnosis

Vehicle2013 Audi Q7

Original concernEngine misfire accompanied by an active coolant leak

Service typeMobile, appointment-based repair

Real work by SnapFix

From concern to completed repair

Concern

Engine misfire accompanied by an active coolant leak

Inspection and findings

Diagnostic testing identified faulty fuel injectors in cylinders 3 and 6. Further inspection revealed a cracked PCV assembly and a damaged coolant pipe contributing to the coolant leak.

Work performed

Injectors 3 and 6, their necessary O-rings and seals, the PCV assembly, coolant pipe, and required intake gaskets were replaced. Components were reassembled and tightened to manufacturer torque specifications.

Result

The documented causes of the misfire and coolant leak were addressed, and the engine was reassembled and checked after service.

Services demonstrated

Advanced engine diagnosticsFuel-injector replacementPCV assembly replacementCooling-system leak repairO-ring, seal, and gasket replacementManufacturer torque procedures

Damaged Audi Q7 coolant pipe found during diagnosis

Cracked Audi Q7 PCV assembly removed during repair

Replacement PCV assembly installed on the Audi Q7

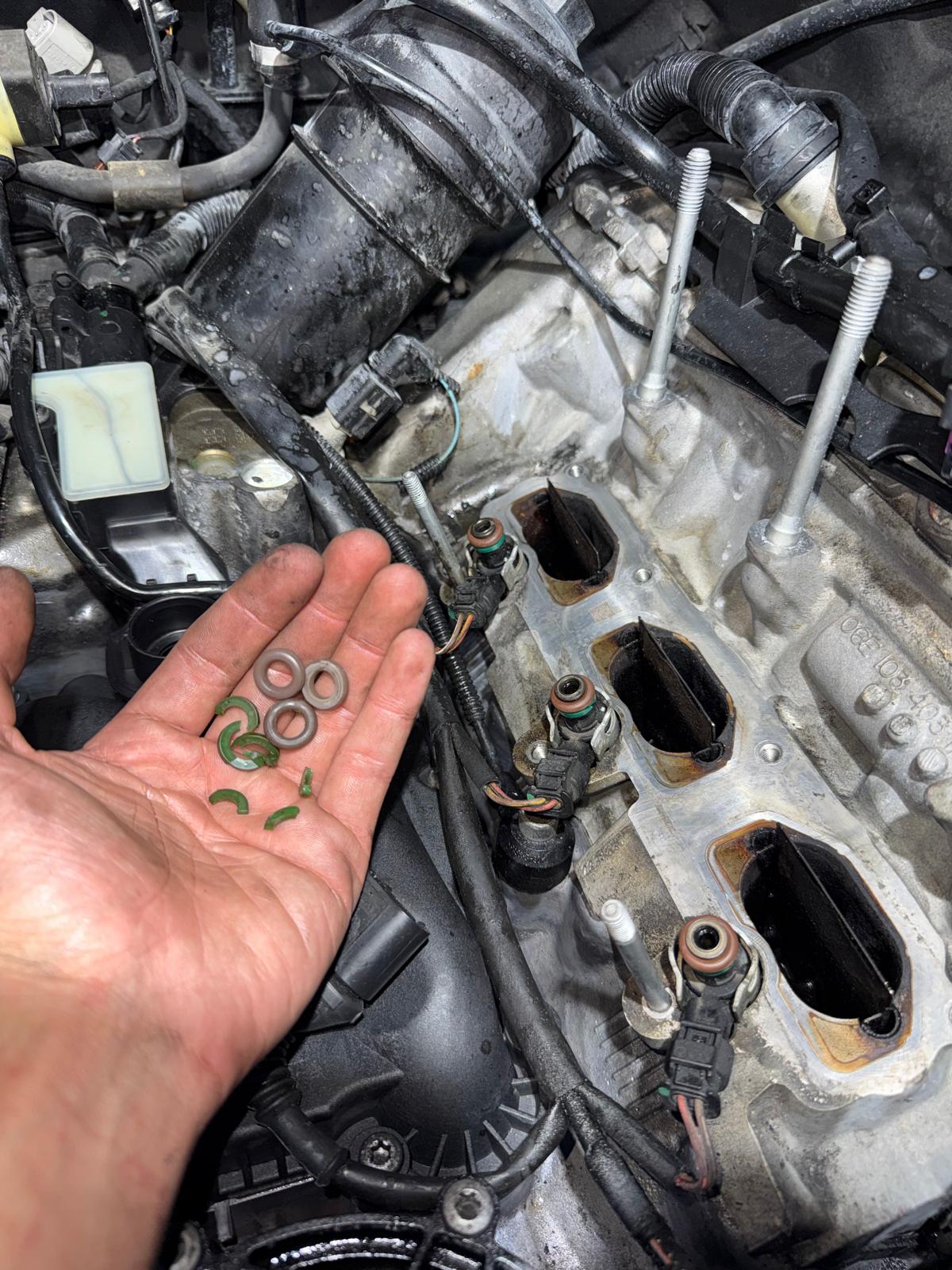

Injector seals and O-rings removed from the Audi Q7

New and faulty Audi Q7 fuel injectors compared

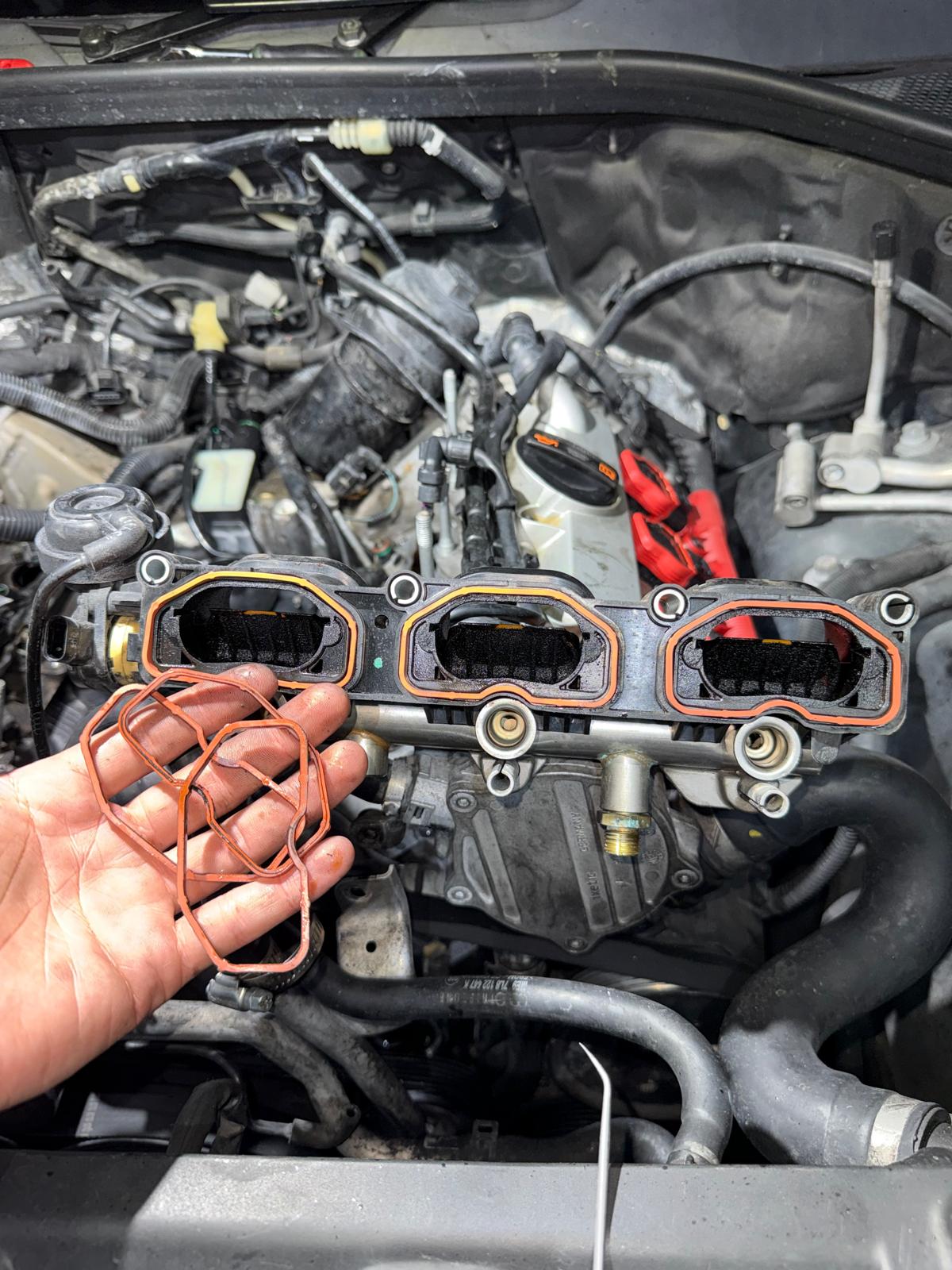

Audi Q7 intake gaskets replaced during reassembly
